Powered by Intel Comet lake processor,focus on office and industry task operating, providing a great display performance and a screen-accrossing experience with DP, HDMI and multi-utilizations Type-C port. Moreover, dual 1000 Mbps ethernet ports , excellent Wi-Fi and bluetooth transmission; leading it to be a efficient helper for government, business and financial fields.

pic_58Technical Files pic_59Send email to us
  • download_img
    pic_65
    Centerm AFB19 Pocket-sized Mini PC
pic_67 Downloads

FEATURES

  • featured

    Compacted design, beyond expectation

    AFB19 with Intel 10Gen processor, is ready to take on graphically demanding and officially casual workloads yet its compacted size takes up minimal space on a desk, making it suited for applications where traditional PCs won’t reach. Wi-Fi 6 networking and dual 1000 Mbps based ethernet ports bring a leisured internet suffering and a speeding data transmission.

  • featured

    Flexible and friendly upgrade

    A fast-convenient chassis design leads you to add or upgrade memory and storage in no more than 3 steps by using a screw driver.

  • featured

    Dual Storage design

    AFB19 fits a m.2 SSD and a 2.5 inch HDD, letting you create your own custom storage solution with the balance of speed and capacity to fit your needs.

  • featured

    Stunning 4K resolution

    Equipped with integrated Intel UHD graphics , so you can enjoy watching video and viewing image in stunning 4K resolution thru HDMI and DP.

  • featured

    Triple display

    Type-C port works with DP and HDMI port for triple displays, would also let you extend your workspace across multiple monitors for more efficient and comfortable operating experiences.

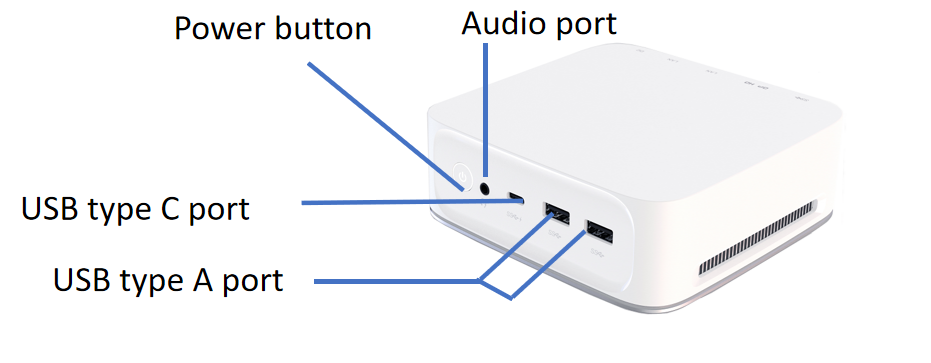

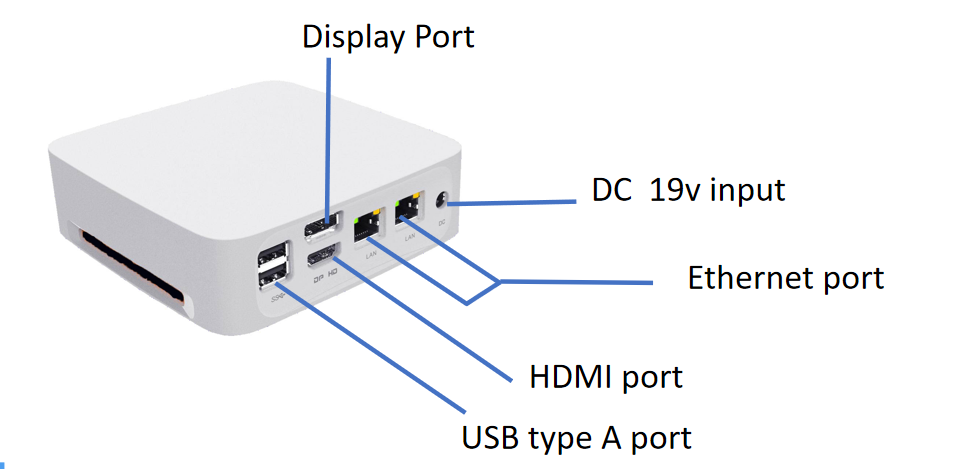

CONNECTIVITY

SPECIFICATION

+

    • Processor
    • RAM (DDR4)
    • Storage
    • Display
    • Resolution
    • Network
    • USB 3.1 Gen1 Type-C
    • USB 3.1 Gen1 Type-A
    • Audio Port
    • VESA
    • Weight
    • Power
    • Dimension(mm)
    • OS
    • Intel i5 Quad core 1.6 GHz
    • 8 GB
    • 256 GB, 1*m.2 2280 SSD
    • HDMI x 1 , DP x 1
    • 3840*2160@60Hz
    • x 2 (10/100/1000Mbps, RJ-45)
    • x 1 (DP,PD,DT)
    • x 4
    • x 1
    • x 1
    • 0.45kg
    • 19V 3.42A
    • 131 x 131 x 47
    • Support Linux
