Real 4K display
2 DP and USB type-C support resolution rate up to 4K.
Centerm D640 Enterprise Thin Client
Centerm D640 Enterprise Thin Client
Equipped with the Intel Jasper lake 10w processor to ensure the sufficient performance as desktop-worthy thin client for education, enterprise and workstation. Citrix, VMware and RDP are supported by default, also enable to meet most case for cloud computing. Moreover, 2 DP and one full function USB type-C would dedicate to the multi-display scenario.
FEATURES
-
-
Multiple interfaces
USB 3.0 x 2, type-c x 1 and USB 2.0 x 6, can meet daily demand for USB connection, serial port and parallel port also would enrich peripherals utilizations.
-
Trusted Platform Module
Giving businesses a layer of protection for data from penetration.
-
Triple display supported
2 DP + Type C support 3 monitors display and work at the same time.
-
Dual 1000 Mbps network adaptor
Dual 1000 Mbps Ethernet ports bring a leisured internet suffering and a speeding data transmission

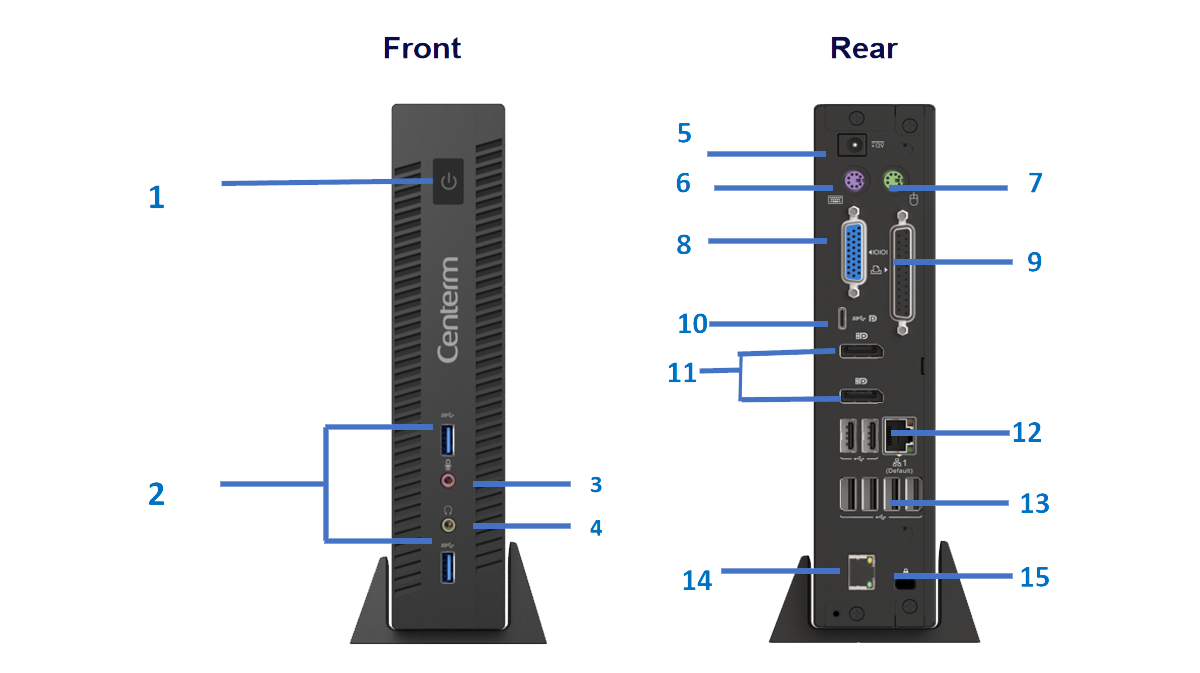

CONNECTIVITY
- 1. Power Button
- 2. USB 3.0 Port
- 3. Mic-in
- 4. Line-out
- 5. DC 12V Input
- 6. PS/2 Keyboard
- 7. PS/2 Mouse
- 8. Serial Port
- 9. Parallel Port
- 10. Type-C Port
- 11. Display Port
- 12. RJ45
- 13. USB 2.0 Port
- 14. RJ45 or Fiber(optional)
- 15. Kensington Lock Slot
SPECIFICATION
+- Processor
- Available Operating System
- Protocol Clients
- Management
- RAM (DDR4)
- Storage (SSD)
- Display
- Resolution
- LAN
- USB 2.0
- USB 3.0
- USB Type-C
- Serial Port
- Parallel Port
- PS/2 Port
- Audio
- Dimension
- Weight
- Adapter
- TDP
- Mountings
- Security
- Cooling
- Operation Temperature
- Relative Humidity
- Intel quad core 2.0 GHz
- WIN 10 IOT
- Citrix workspace app/ Microsoft Remote Desktop Client / Vmware Horizon Client
- CDMS1
- 4GB
- 64GB mSATA
- 2 x DP
- 4096 x 2160 @ 60Hz (DP) , 4096* 2160 @60Hz (Type-C)
- x 1 (10/100/1000Mbps,RJ45)
- x 6
- x 2
- x 1
- x 1 (extensible to 4 via cable)
- x 1
- x 2
- Line-out x 1 , Mic-in x 1
- 206mm x 48mm x 215mm (stand excluded)/ 206mm × 83mm ×223mm (stand included)
- 1.18kg
- Worldwide auto-sensing 100-240V AC, 50/60 Hz, 12V/3A DC
- < 10w
- Vertical feet standard
- Standard Kensington anti-theft keyhole
- Fan-less Convection
- 0℃ to 40℃
- 30% to 90% non-condensing
Optional items
+- RAM (DDR4)
- m.2
- Network
- Speaker
- Storage
- Fiber Ethernet Adapter.2
- IC Card Reader
- TPM module
- Available at 16 GB
- x 1 SATA or PCIE, 2242 or 2280 x 1 (Wi-Fi)
- x 1 (10/100/1000M bps,RJ45)2
- x 1 (Internal)
- x 1 SATA
- x 1
- x 1
- x 1
